  • QHW-H11A6
    Intel 6/7代Core i3/i5/i7處理器, H110芯片, 18*SATA, 2*LAN, 1*PCIe x16, 1*Mini-PCIe
#




產(chǎn)品簡介
  • 支持Intel 6/7代Core i3/i5/i7處理器
  • 采用Intel H110芯片組
  • 4*Mini-SAS (16*SATA), 1*SATA 3.0, 1*mSATA/M.2
  • 2*Intel千兆網(wǎng)口, 1*PCIe x16, 1*Mini-PCIe
  • 1*VGA, 2*HDMI, 支持雙屏異顯
  • 提供NVR專用報警端子(RS485, GPIO)

規(guī)格
General
CPU
 		Intel? 6th and 7th Generation CoreTM i3/i5/i7, Pentium?, Celeron? CPU, LGA1151
Chipset
 		Intel? H110 Chipset, TDP 6W
Memory
 		DDR4-1866/2133, 2*U-DIMM, up to 32 GB
Storage
 		4*Mini-SAS (16*SATA), 1*SATA 3.0, 1*mSATA/M.2
Expansion Interface
 		1*PCIe x16, 1*Mini-PCIe (mSATA/3G/4G supported)
BIOS
 		AMI UEFI BIOS
System
 		Windows 7/8.1/10, Server 2008/2012, Linux

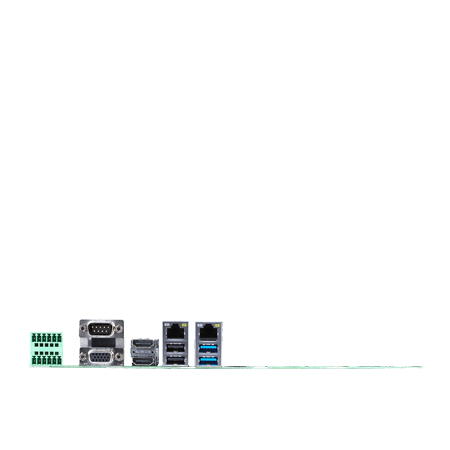

I/O Interface
Ethernet
 		2*Intel? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		2*RS232
USB
 4*USB 3.0, 5*USB 2.0
Audio
 		Realtek? ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2
 		1*PS/2 Header (Keyboard & Mouse)
Parallel Port
 		1*LPT Header
GPIO
 		8*Programmable GPIO, 4*in/2*out Opto-Isolated GPIO
Feature Interface

1*Front Audio,

1*Buzzer Mute
Display
Display Interface

1*VGA: max resolution up to 1920*1200@60Hz
2*HDMI: max resolution up to 4096*2160@24Hz

Multiple Display
 		Dual
Mechanical & Environment
Dimension
 		275*210mm
Power Input
 		ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
