  • QHW-H3C26C
    Intel 6/7/8/9代Core i3/i5/i7處理器, H310C芯片, SVIO雙層IO設計, 最多支持18*COM, 18*USB
#




產品簡介
  • 支持Intel 6/7/8/9代Core i3/i5/i7處理器
  • 采用Intel H310C芯片組
  • 10*USB, 6*COM, 2*千兆網口

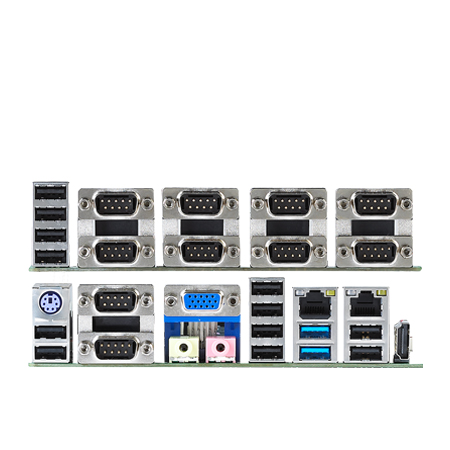

  • SVIO雙層設計, 搭配SV-M5子卡, 可最多擴展至18*COM, 18*USB
  • 1*VGA, 1*HDMI, 支持雙屏異顯
  • 1*PCIe x16, 2*Mini-PCIe支持mSATA和Wifi/3G/4G

規格
General
CPU
 		Intel? 6/7/8/9th Generation CoreTM i3/i5/i7, Pentium?, Celeron? CPU, LGA1151
Chipset
 		Intel? H310C Chipset, TDP 6W
Memory
 		DDR4-1866/2133, 2*U-DIMM, up to 32 GB
Storage
 		2*SATA 3.0, 1*mSATA
Expansion Interface
 		1*PCIe x16, 2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)
BIOS
 		AMI UEFI BIOS
System
 		Windows 7/8.1/10, Linux
I/O Interface
Ethernet
 		2*Realtek? 1Gbps PCIe Ethernet Controller, RJ45
Serial
 		6*RS232 (Up to 18*RS232 with SV-M5-CU)
USB
 2*USB 3.0, 8*USB 2.0 (Up to 18*USB with SV-M5-CU)
Audio
 		Realtek? 5.1 channel HDA Codec, with MIC/Line-out
PS/2
 		1*PS/2 Port (Keyboard)
Parallel Port
 		1*LPT Header
GPIO
 		8*Programmable GPIO
Display
Display Interface

1*VGA: max resolution up to 1920*1200@60Hz
1*HDMI: max resolution up to 4096*2160@24Hz

Multiple Display
 		Dual
Mechanical & Environment
Dimension
 		170*170mm
Power Input
 		ATX PSU
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity
 		Operation: 10%~90%, Storage: 5%~95%, non-condensing
